Lumera — Custom Retractable Pergola

A Retractable Roof, Built to Your Space

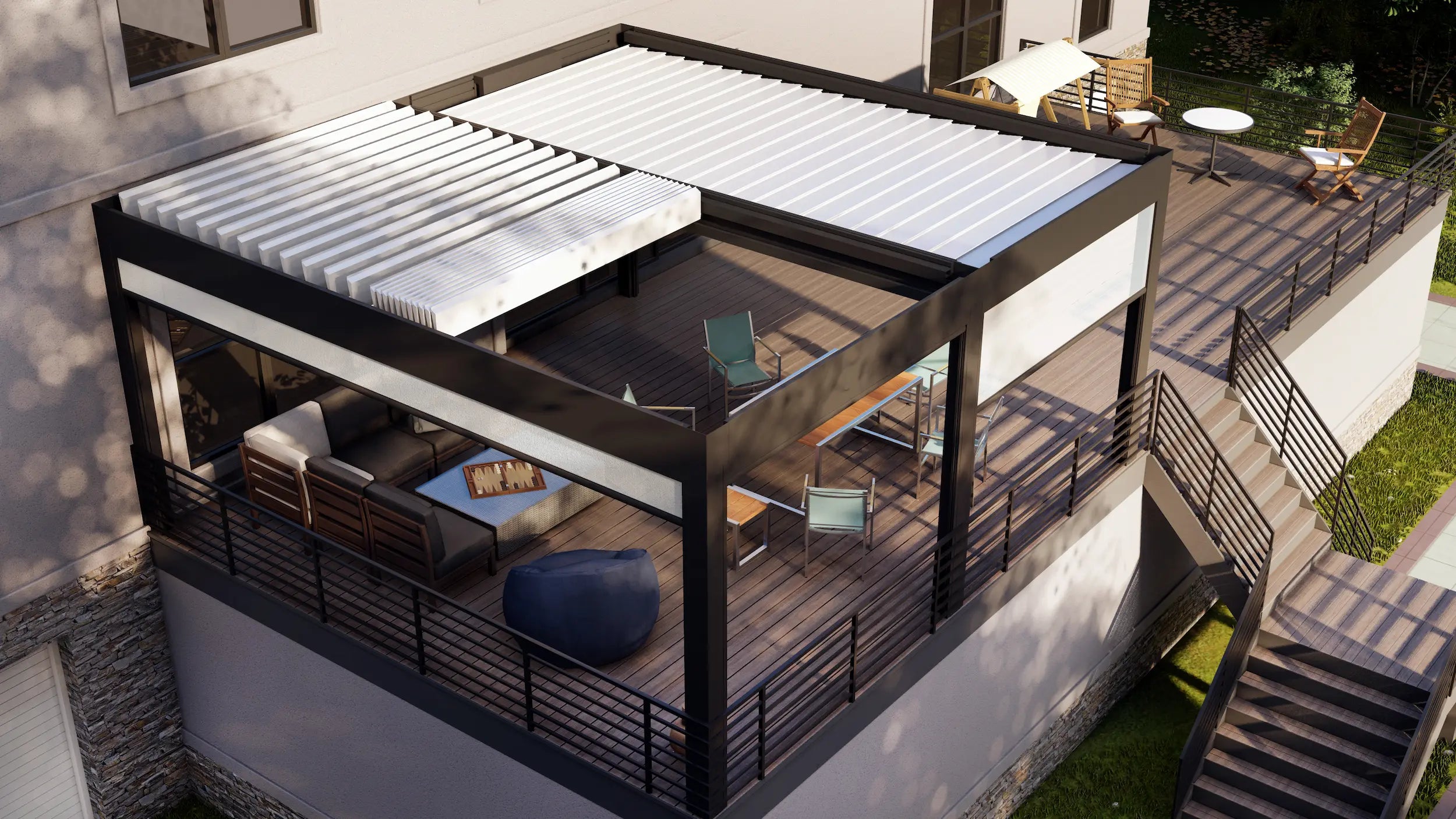

Lumera is Rinova's custom retractable line. Instead of fixed louvers, the aluminum blades slide back and stack at one end, opening up to 70% of the roof to the sky. Close them again for shade and rain cover. Every Lumera is made to measure and engineered for your site.

  • Made to measure
  • Up to 70% open sky
  • Motorized, with remote control
  • Custom-size planning
  • Retractable aluminum roof
  • Powder-coated finish
  • Quiet motorized operation
  • Residential and commercial
What Lumera is

Open Sky or Full Cover — Your Choice

A retractable roof moves out of the way entirely, so the same structure can be an open patio one afternoon and a covered one the next. It suits spaces where you want sun on demand rather than a permanently roofed area.

Retractable roof

The blades tilt, slide back and stack at one end, so up to 70% of the roof is open sky.

Made to measure

Built to your space, up to 22 ft 11 in in projection and 16 ft 5 in wide.

Quiet, motorized operation

A motor and belt drive move the roof at the press of a remote.

Powder-coated aluminum

The same frame material as Terra and Venta — no staining, rot or rust.

Engineered per project

Each build is engineered to CBC 2022 / ASCE 7 site wind loads.

Finish options

Anthracite gray, pure white or jet black as standard, with other RAL colors on request.

Open-sky roof

Up to 70% Open Sky

When the blades are fully opened they stack at one end of the roof, leaving 70% of the area open. You get maximum daylight, a spacious feel, and controlled rain protection when you close it again.

67.5° blade opening angle

The blades tilt to 67.5° before they slide back and stack.

6.6 in stack height

The stacked blades sit only 16.8 cm (6.6 in) above the frame.

Request a Lumera Quote
Lumera retractable pergola with the blades stacked, showing 70% open sky and a 67.5 degree blade angle
Technical data

Lumera Sizes and Specifications

Every Lumera is made to order. These are the limits of the system. Your quote is based on your exact dimensions.

Roof typeRetractable aluminum blades that tilt, slide and stack
Maximum projection22 ft 11 in (698.5 cm)
Maximum width16 ft 5 in (500 cm)
Maximum height9 ft 10 in (300 cm)
Open area70% of the roof when the blades are fully opened
Blade opening angle67.5°
Stacked blade height16.8 cm (6.6 in)
BladesExtruded aluminum, about 279 mm (11 in) wide
Posts160 × 160 mm aluminum (6.3 × 6.3 in)
Beams160 × 210 mm aluminum (6.3 × 8.3 in)
Intermediate beamAdded when the projection is 16 ft 5 in (5 m) or more
DriveMotor with belt drive and a scissor mechanism
ControlRemote control
Sensor optionSun, wind and rain sensor
DrainagePerimeter gutter with a water outlet at the post base, with or without a drain pipe
Standard colorsRAL 7016 anthracite gray, RAL 9010 pure white, RAL 9005 jet black
Other colorsOther RAL colors on request, at extra charge
Lighting optionsDaylight-white LED or RGB LED
Gutter extensionOptional. It hides the scissor mechanism

Height is measured under the gutter. Metric values are the manufacturing dimensions; imperial values are rounded. Final sizes, loads and anchoring are confirmed in the engineering for your site.

How the roof moves

A Scissor System That Opens Quietly

The blades ride on a scissor mechanism that is pulled by a belt on each side of the roof. It runs silently, spans large openings, and arrives pre-assembled, so installation is quick and the movement is smooth from the first day.

Thick and thin blades

Thick blades carry the load at the front of the roof. The rest are thin blades, which cut the operating load by 30%.

Delivered pre-assembled

The scissor system and the blades are delivered assembled.

Lumera scissor mechanism and aluminum blades inside the roof frame
See the details

How a Lumera Goes Together

Three short animations of the parts you do not see once the pergola is installed.

The retracting roof

The blades tilt, slide along the frame and stack at one end.

The corner joint

Beams lock into the post through a concealed corner connector.

The water outlet

Rainwater runs down inside the post and exits at the base.

Design details

Details That Make the Difference

Perimeter LED lighting

An energy-saving LED line gives uniform light around the frame.

Gutter extension

An optional extension hides the scissor mechanism from view.

Covered post

A removable post cover gives easy access to the electrical connections.

Water outlet

A modern outlet at the post base carries rainwater away.

Leak protection

The closed blades and gutters are designed to keep water out.

Sun, wind and rain sensor

An optional sensor reads the weather for the roof.

Louvered or retractable?

Which Roof Suits Your Space

Terra, Venta and our custom Forterra use rotating louvers that tilt for shade and close for cover. Lumera retracts instead. Neither is better — it depends on how you want to use the space.

Choose louvered (Terra / Venta / Forterra)

You want adjustable shade and airflow through the day, with a fixed roof structure overhead year-round.

Choose retractable (Lumera)

You want the option of open sky — up to 70% of the roof — and cover only when you need it.

Plan it in from day one

Accessories You Can Build In

Screens, lighting and heating are easier to integrate when they are part of the original design.

Retractable side screens

Manual or solar-powered screens for sun, wind and privacy.

Integrated lighting

Daylight-white or RGB LED lighting built into the frame.

Radiant heating

Infrared heaters to extend the outdoor season.

How it works

From Measurements to Installed

You do not need exact dimensions or a finished plan to start.

  1. Share your space

    Approximate measurements and a few photos are enough to begin.

  2. Consult with a specialist

    We review your layout, orientation and how you want to use the space.

  3. Review the design

    Dimensions, mounting, finish and accessories, explained clearly.

  4. Engineering and permits

    Your build is engineered for the site and submitted where a permit is required.

  5. Installation

    Our Orange County crew installs it and walks you through operation.

Questions

Lumera Questions, Answered

What is the difference between Lumera and Terra, Venta or Forterra?

Terra, Venta and the custom Forterra have louvered roofs — aluminum blades that rotate for shade and close for cover. Lumera is our retractable line: the blades slide back and stack, so up to 70% of the roof can be left open to the sky.

When the blades are fully opened, 70% of the roof area is open. The blades tilt to 67.5° and stack at one end, and the stack is only 16.8 cm (6.6 in) high.

Up to 22 ft 11 in in projection (698.5 cm), 16 ft 5 in in width (500 cm) and 9 ft 10 in in height (300 cm). When the projection is 16 ft 5 in (5 m) or more, an intermediate beam is added.

No — Lumera is planned per project. Dimensions, mounting and finish are chosen for your space, which is why it is quoted rather than listed as a fixed kit.

Lumera is motorized. A motor with a belt drive moves the blades on a scissor mechanism, and you control it with a remote. A sun, wind and rain sensor is available as an option.

The standard colors are RAL 7016 anthracite gray, RAL 9010 pure white and RAL 9005 jet black, and other RAL colors can be ordered at extra charge. LED lighting is available in daylight white or RGB.

Yes. With the roof closed, the blades and the perimeter gutter are designed for leak protection, and rainwater exits through an outlet at the base of the post.

Yes. Lumera can be built freestanding or attached to an existing wall or roofline, depending on your layout.

It depends on your city, the size of the structure and how it is anchored. We handle the engineering and the submission where a permit is required.

Because every Lumera is made to measure, pricing depends on size, mounting and accessories. Send us your approximate dimensions and we will quote it.

Send approximate measurements and a few photos of the space through the form below and a specialist will follow up.
