Forterra gives you year-round outdoor comfort with adjustable aluminum louvers. Tilt them to control sun, heat and airflow, or close them to keep the rain out. Every Forterra is built to the width, projection and height of your space, and it is made from 98% recyclable materials.
Up to 20 ft projection × 14 ft 9 in width (611 × 450 cm), with one motor.
Two louver bays and two motors for projections up to 33 ft (1,006 cm).
Forterra is the right path when standard dimensions don't fit your project. And if a fixed-size Terra or Venta kit is actually the better match for your space, we'll tell you — no pressure either way.
Your space doesn't match available kit sizes.
Bigger footprints that need project-specific planning.
Pergolas planned against an existing wall or roofline.
L-shapes, angles, columns or obstacles to work around.
Restaurant patios and other commercial seating spaces.
Projects planned around screens, heating or lighting from day one.
Choose a freestanding structure or mount it to your wall. Larger spaces use the two-motor Duo or Linear layout, with a middle post line and two louver bays.
Width from 6 ft 7 in to 14 ft 9 in, projection from 6 ft 8 in to 33 ft, and height up to 9 ft 10 in.
Four posts in the garden, or fixed to the wall of your home.
Duo opens its two louver bays in opposite directions. Linear opens both the same way.
Anthracite gray, pure white or jet black. The frame and the louvers can be different colors.
Dimmable daylight-white LED or color-changing RGB LED.
An optional multi sensor reads rain, sun, wind, snow and temperature.
Optional louver insulation.
Choose which side drains, with or without a drain pipe connection.
Every Forterra is made to order. These are the limits of the system. Your quote is based on your exact dimensions.
| Specification | Forterra (1 motor) | Forterra Duo / Linear (2 motors) |
|---|---|---|
| Mounting | Freestanding or wall-mounted | Freestanding or wall-mounted |
| Maximum projection | 20 ft (611 cm) | 33 ft (1,006 cm) |
| Maximum width | 14 ft 9 in (450 cm) | 14 ft 9 in (450 cm) |
| Maximum height | 9 ft 10 in (300 cm) | 9 ft 10 in (300 cm) |
| Louver bays | One | Two, with a middle connection |
| Louver opening | One direction | Duo: opposite directions. Linear: same direction |
| Larger layouts | Modules can be joined side by side or end to end (Forterra+) | |
| Posts | 150 × 150 mm aluminum (5.9 × 5.9 in) | |
| Beams | 220 mm (8.7 in) aluminum beam with a built-in gutter | |
| Louvers | Extruded aluminum, about 200 mm (7.9 in) wide | |
| Drive | 24 V linear actuator, 3,000 N push and pull force, built-in limit switch | |
| Motor protection | Rated up to IP68. Noise level 55 dB or less | |
| Control | Radio remote control for the louvers and the LED lighting | |
| Drainage | Closed louvers drain into the perimeter gutter and down through the posts | |
| Standard colors | RAL 7016 anthracite gray, RAL 9010 pure white, RAL 9005 jet black | |
| Other colors | Other RAL colors on request, at extra charge | |
| Lighting options | Daylight-white LED (dimmable) or RGB LED | |
| Sensor options | Rain sensor, or a multi sensor for rain, sun, wind, snow and temperature | |
| Materials | Powder-coated aluminum. 98% recyclable materials | |
Height is measured under the gutter. Metric values are the manufacturing dimensions; imperial values are rounded. Final sizes, loads and anchoring are confirmed in the engineering for your site.
Every Forterra is planned around your dimensions and finished to handle sun, rain and wind — season after season. The motor, the wiring and the drainage are hidden inside the frame.
Louvered pergola systems designed in Germany, engineered for demanding outdoor use.
Rainwater runs from the closed louvers into the gutter and exits through the posts.
Forterra louvers are driven by a concealed 24 V linear actuator and controlled from a handheld remote.
Open, tilt and close the louvers from a multi-channel radio remote. The same remote dims the LED lighting.
3,000 N of push and pull force, with a built-in limit switch that stops the louvers at the open and closed positions.
The actuator is rated up to IP68, runs at 55 dB or less, and is salt-spray tested for 480 hours.
An optional rain sensor responds when it starts to rain.
One optional unit measures rain, sun, wind, snow and temperature.
Daylight-white LED with dimming, or RGB LED for color.
Submit approximate measurements and a few notes about the space.
We'll discuss your layout, goals and site conditions.
Layout, roof operation, finish and accessory choices — explained in plain language.
A project-specific recommendation and quote for your space.
Move forward when you're ready — no pressure.
| Consideration | Fixed-Size Kit | Forterra Custom Pergola |
|---|---|---|
| Dimensions | Available standard sizes | Made to your dimensions, up to 33 ft long |
| Best for | Defined, compatible layouts | Unique, large or complex spaces |
| Selection | Terra or Venta models | Forterra, Forterra Duo or Forterra Linear |
| Roof operation | Terra: manual crank. Venta: motorized | Motorized, with remote control |
| Mounting | Freestanding or wall-mounted | Freestanding or wall-mounted |
| Planning | Simpler model selection | Consultation-led planning |
| Accessories | Available options | Planned around the project |

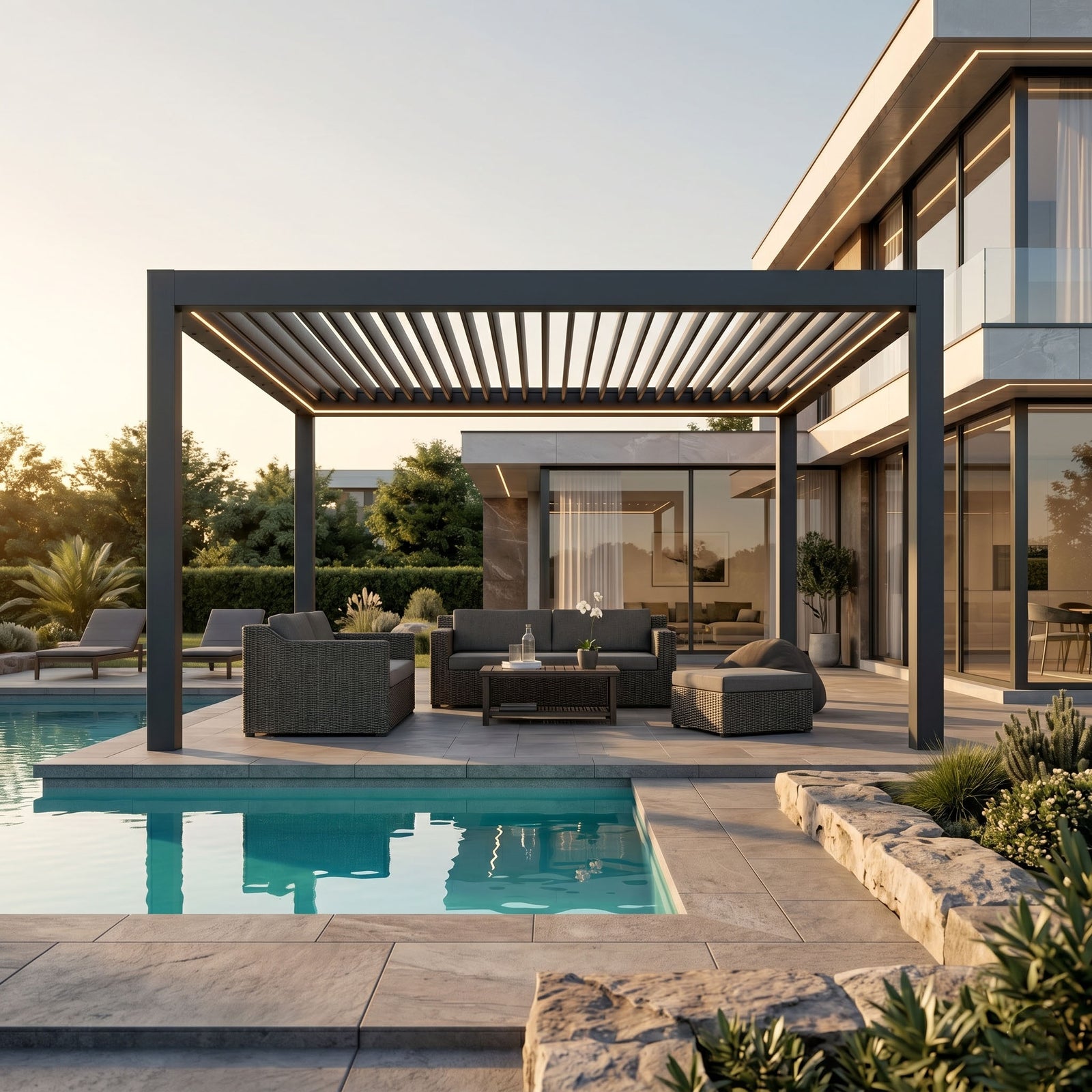

Custom pergolas can be planned around outdoor living areas, poolside spaces, larger patios, commercial seating and attached home layouts.
Durable aluminum made for outdoor conditions.
Clean lines that complement contemporary spaces.
A durable protective finish for lasting looks.
Every Forterra project starts from your dimensions.
Remote-controlled louvers, with optional weather sensors.
Retractable screens, heating and lighting available.
Real help from measurement to recommendation.
Closed louvers channel rainwater away through the frame.
Forterra is Rinova's custom louvered pergola. It is a motorized aluminum system that is made to measure, so the width, projection and height are built for your space instead of chosen from a list of kit sizes.
A single-motor Forterra can be up to 20 ft in projection (611 cm) and 14 ft 9 in wide (450 cm). Forterra Duo and Linear use two louver bays and two motors to reach 33 ft (1,006 cm). The maximum height under the gutter is 9 ft 10 in (300 cm). For bigger areas, several modules can be joined side by side or end to end.
Choose custom when your space doesn't match available standard kit dimensions, when the pergola needs to attach to an existing structure in a specific way, or when the project is larger or more complex. If a fixed-size Terra or Venta kit actually fits your space well, we'll recommend it.
No. Approximate width and depth are enough to begin. Our team will help you confirm exact dimensions during the consultation.
Yes. Forterra is available freestanding on four posts or wall-mounted, in both the single-motor and the two-motor Duo and Linear layouts.
The standard colors are RAL 7016 anthracite gray, RAL 9010 pure white and RAL 9005 jet black. The frame and the louvers can be different colors. Other RAL colors can be ordered at extra charge.
Forterra is motorized. A concealed 24 V linear actuator moves the louvers, and you control it from a radio remote. Optional sensors for rain, sun, wind, snow and temperature can be added.
Yes. LED lighting is available as dimmable daylight-white or RGB. Retractable screens (manual or solar-powered) and radiant heating can also be planned into a custom project.
Yes — custom planning suits commercial outdoor areas such as restaurant patios and other seating spaces, alongside residential projects.
Forterra is made to order. Factory production takes approximately 4–6 weeks. Shipping, permitting and installation scheduling are added to that, and we confirm the timeline with your quote.
Rinova provides installation guidance, and professional installation is commonly recommended for custom and motorized systems to ensure the best performance and durability.
Permit requirements vary by location and project — especially for attached or larger structures. Please confirm applicable requirements with your local authority. Rinova's team can discuss your project details, but this should not be taken as legal or permitting advice.
Approximate dimensions and a few project details are enough to begin. A Rinova pergola expert can help you evaluate the available options.
