Forterra — Custom Louvered Pergola

A Pergola Designed Around Your Space

Forterra is Rinova's made-to-measure motorized louvered pergola. It is built to your dimensions, up to 20 ft × 14 ft 9 in on a single motor and up to 33 ft long with two, freestanding or mounted to your wall.

  • Made to measure, up to 33 ft long
  • Motorized louvers with remote control
  • Free project consultation
  • Made to measure
  • Motorized louvers
  • Powder-coated aluminum
  • Freestanding or wall-mounted
  • Residential and commercial
Meet Forterra

Our Custom Louvered Pergola System

Forterra gives you year-round outdoor comfort with adjustable aluminum louvers. Tilt them to control sun, heat and airflow, or close them to keep the rain out. Every Forterra is built to the width, projection and height of your space, and it is made from 98% recyclable materials.

Single-motor Forterra

Up to 20 ft projection × 14 ft 9 in width (611 × 450 cm), with one motor.

Forterra Duo and Linear

Two louver bays and two motors for projections up to 33 ft (1,006 cm).

Request a Custom Pergola Quote
Forterra custom louvered pergola showing height, projection and width
Is custom right for you?

When a Custom Pergola Makes Sense

Forterra is the right path when standard dimensions don't fit your project. And if a fixed-size Terra or Venta kit is actually the better match for your space, we'll tell you — no pressure either way.

Non-standard dimensions

Your space doesn't match available kit sizes.

Large patios

Bigger footprints that need project-specific planning.

Attached structures

Pergolas planned against an existing wall or roofline.

Unique layouts

L-shapes, angles, columns or obstacles to work around.

Commercial outdoor areas

Restaurant patios and other commercial seating spaces.

Accessory-led planning

Projects planned around screens, heating or lighting from day one.

Four ways to build it

Forterra Configurations

Choose a freestanding structure or mount it to your wall. Larger spaces use the two-motor Duo or Linear layout, with a middle post line and two louver bays.

Your project, your choices

What You Can Customize on a Forterra

Custom dimensions

Width from 6 ft 7 in to 14 ft 9 in, projection from 6 ft 8 in to 33 ft, and height up to 9 ft 10 in.

Freestanding or wall-mounted

Four posts in the garden, or fixed to the wall of your home.

Single, Duo or Linear

Duo opens its two louver bays in opposite directions. Linear opens both the same way.

Frame and louver colors

Anthracite gray, pure white or jet black. The frame and the louvers can be different colors.

Integrated LED lighting

Dimmable daylight-white LED or color-changing RGB LED.

Weather sensors

An optional multi sensor reads rain, sun, wind, snow and temperature.

Insulated louvers

Optional louver insulation.

Drainage layout

Choose which side drains, with or without a drain pipe connection.

Technical data

Forterra Sizes and Specifications

Every Forterra is made to order. These are the limits of the system. Your quote is based on your exact dimensions.

Specification Forterra (1 motor)Forterra Duo / Linear (2 motors)
MountingFreestanding or wall-mountedFreestanding or wall-mounted
Maximum projection20 ft (611 cm)33 ft (1,006 cm)
Maximum width14 ft 9 in (450 cm)14 ft 9 in (450 cm)
Maximum height9 ft 10 in (300 cm)9 ft 10 in (300 cm)
Louver baysOneTwo, with a middle connection
Louver openingOne directionDuo: opposite directions. Linear: same direction
Larger layoutsModules can be joined side by side or end to end (Forterra+)
Posts150 × 150 mm aluminum (5.9 × 5.9 in)
Beams220 mm (8.7 in) aluminum beam with a built-in gutter
LouversExtruded aluminum, about 200 mm (7.9 in) wide
Drive24 V linear actuator, 3,000 N push and pull force, built-in limit switch
Motor protectionRated up to IP68. Noise level 55 dB or less
ControlRadio remote control for the louvers and the LED lighting
DrainageClosed louvers drain into the perimeter gutter and down through the posts
Standard colorsRAL 7016 anthracite gray, RAL 9010 pure white, RAL 9005 jet black
Other colorsOther RAL colors on request, at extra charge
Lighting optionsDaylight-white LED (dimmable) or RGB LED
Sensor optionsRain sensor, or a multi sensor for rain, sun, wind, snow and temperature
MaterialsPowder-coated aluminum. 98% recyclable materials

Height is measured under the gutter. Metric values are the manufacturing dimensions; imperial values are rounded. Final sizes, loads and anchoring are confirmed in the engineering for your site.

Design & build

Modern Design, Durable Construction

Every Forterra is planned around your dimensions and finished to handle sun, rain and wind — season after season. The motor, the wiring and the drainage are hidden inside the frame.

German-designed system

Louvered pergola systems designed in Germany, engineered for demanding outdoor use.

Hidden drainage

Rainwater runs from the closed louvers into the gutter and exits through the posts.

Discuss My Project
Forterra construction details: motor arm, louver track, corner joint and post base with drain
Motor, lighting and sensors

Quiet Motor, Remote Control and Smart Sensors

Forterra louvers are driven by a concealed 24 V linear actuator and controlled from a handheld remote.

Remote control

Open, tilt and close the louvers from a multi-channel radio remote. The same remote dims the LED lighting.

24 V linear actuator

3,000 N of push and pull force, with a built-in limit switch that stops the louvers at the open and closed positions.

Built for the outdoors

The actuator is rated up to IP68, runs at 55 dB or less, and is salt-spray tested for 480 hours.

Rain sensor

An optional rain sensor responds when it starts to rain.

Multi sensor

One optional unit measures rain, sun, wind, snow and temperature.

LED lighting

Daylight-white LED with dimming, or RGB LED for color.

How custom works

The Custom Design Process

Forterra louvered pergola with a glass enclosure
  1. Share your project details

    Submit approximate measurements and a few notes about the space.

  2. Consult with a pergola expert

    We'll discuss your layout, goals and site conditions.

  3. Review your options

    Layout, roof operation, finish and accessory choices — explained in plain language.

  4. Receive your recommendation

    A project-specific recommendation and quote for your space.

  5. Confirm the next steps

    Move forward when you're ready — no pressure.

At a glance

Fixed-Size Kit vs. Forterra Custom Pergola

Consideration Fixed-Size Kit Forterra Custom Pergola
Dimensions Available standard sizes Made to your dimensions, up to 33 ft long
Best for Defined, compatible layouts Unique, large or complex spaces
Selection Terra or Venta models Forterra, Forterra Duo or Forterra Linear
Roof operation Terra: manual crank. Venta: motorized Motorized, with remote control
Mounting Freestanding or wall-mounted Freestanding or wall-mounted
Planning Simpler model selection Consultation-led planning
Accessories Available options Planned around the project
Project showcase

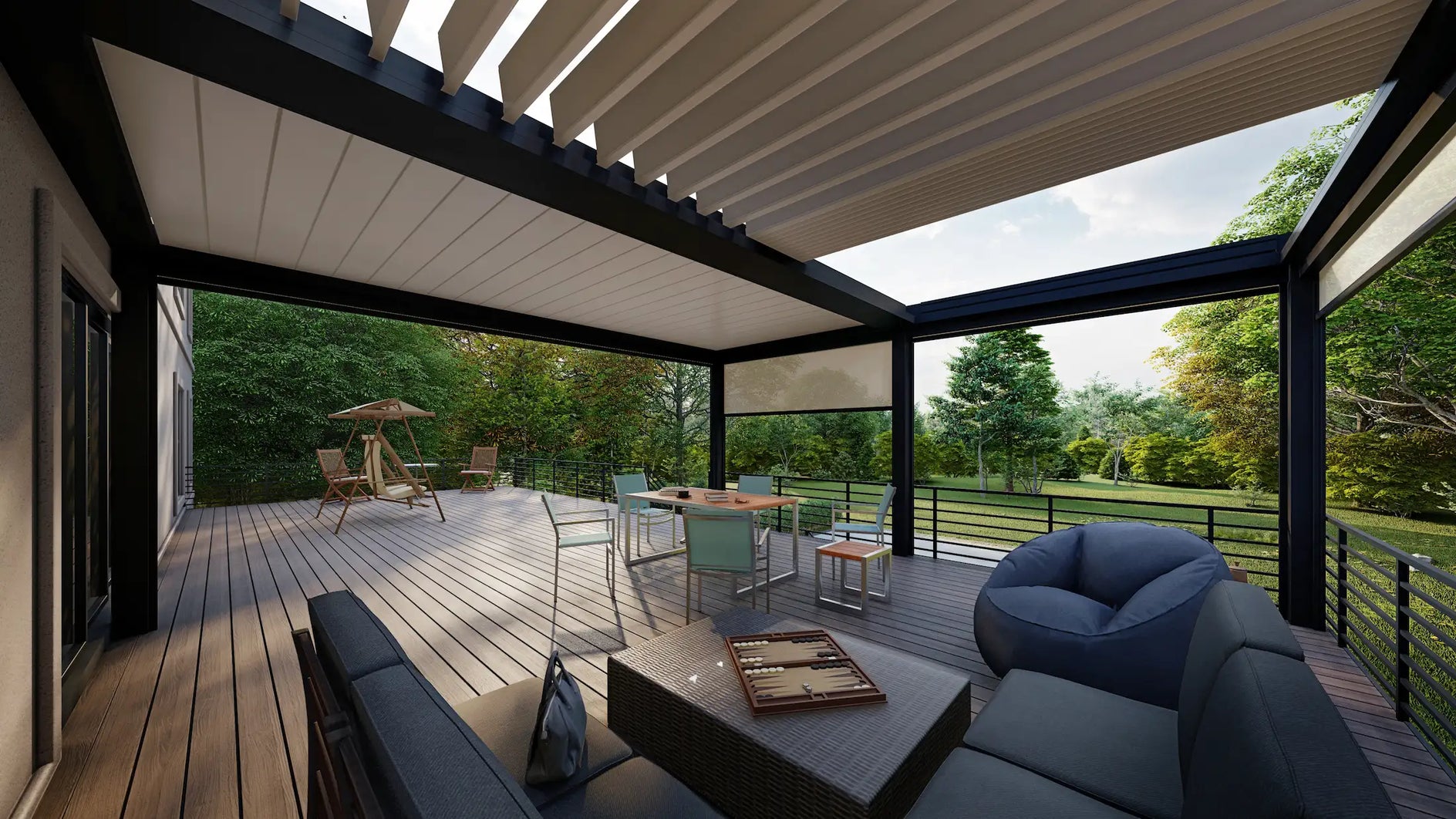

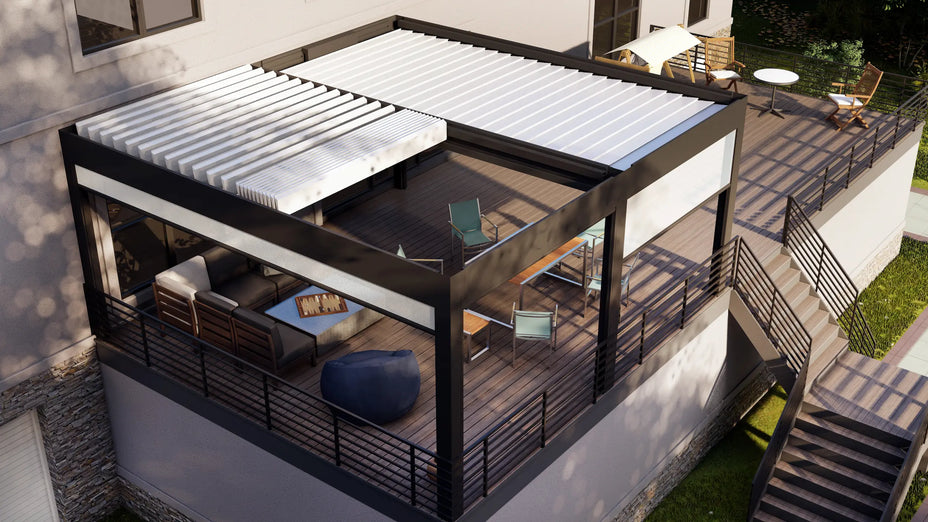

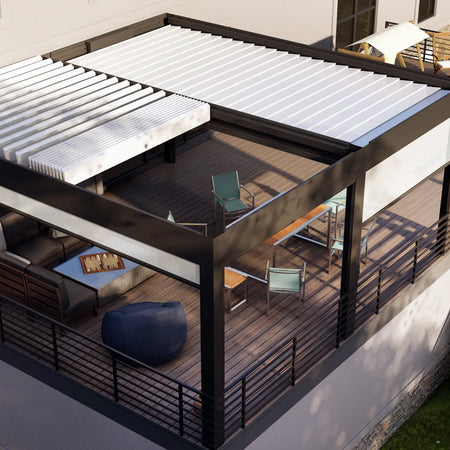

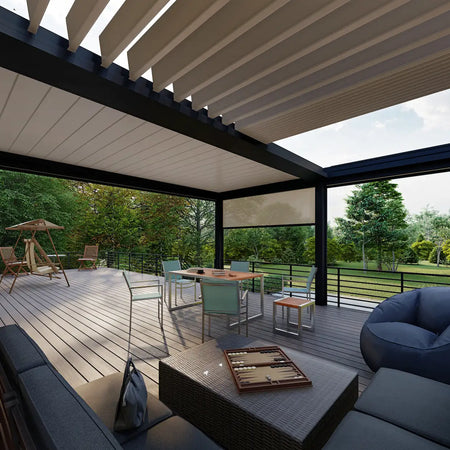

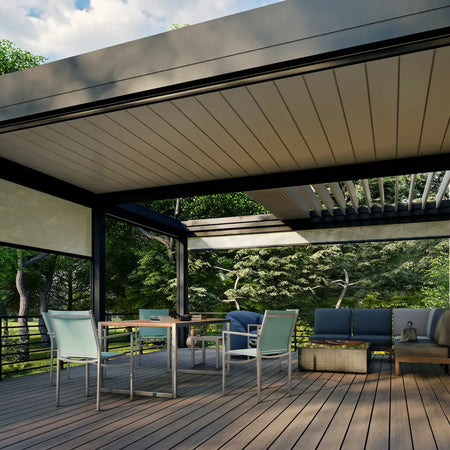

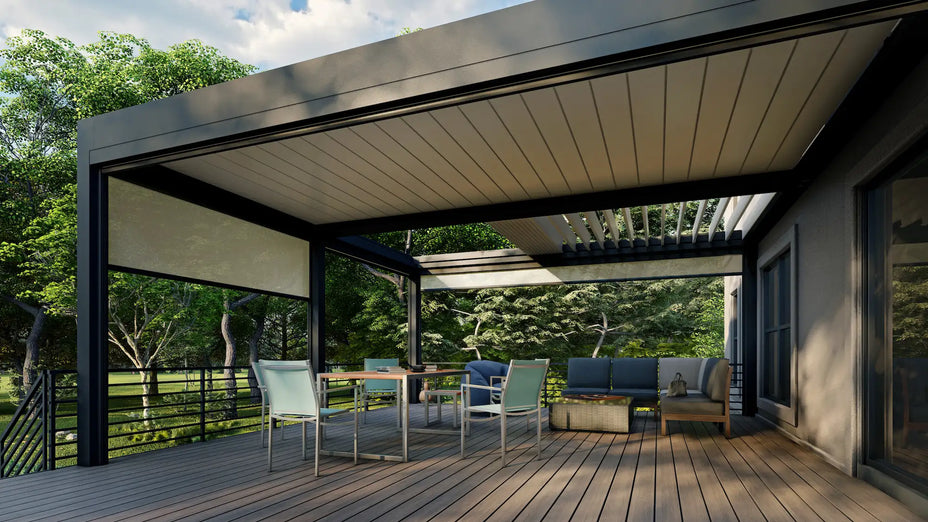

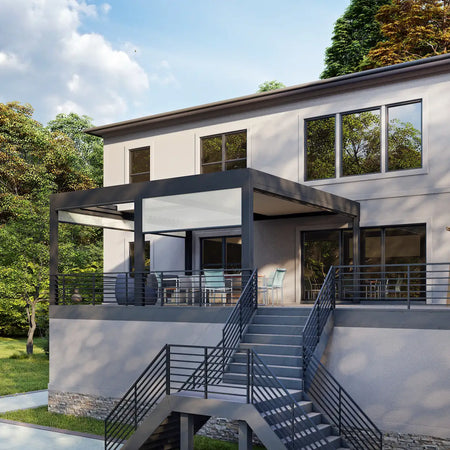

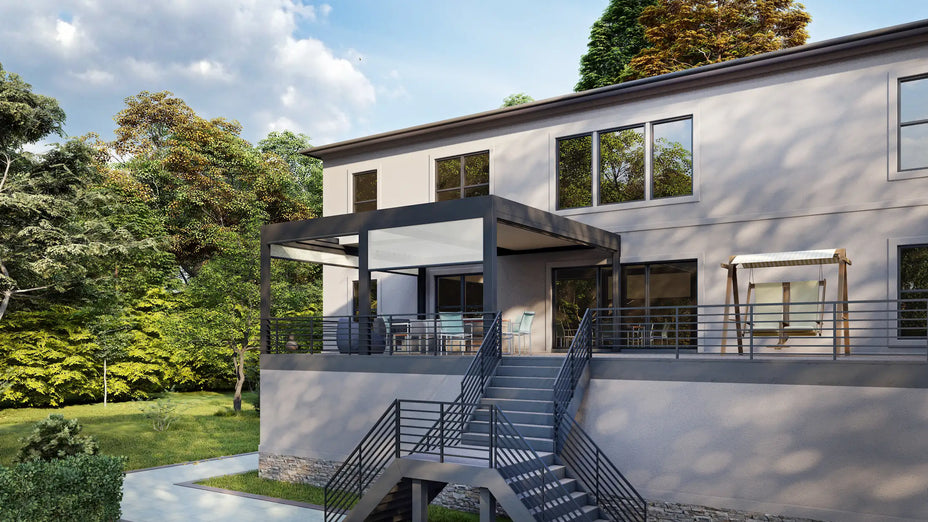

Custom Projects, Installed

Custom pergolas can be planned around outdoor living areas, poolside spaces, larger patios, commercial seating and attached home layouts.

EXCELLENT

Google

See our reviews on Google
Why Rinova

Why Plan Your Custom Pergola with Rinova

Aluminum construction

Durable aluminum made for outdoor conditions.

Modern design

Clean lines that complement contemporary spaces.

Powder-coated finish

A durable protective finish for lasting looks.

Custom-size planning

Every Forterra project starts from your dimensions.

Motorized louvers

Remote-controlled louvers, with optional weather sensors.

Screens and comfort accessories

Retractable screens, heating and lighting available.

Pergola expert assistance

Real help from measurement to recommendation.

Improved water drainage

Closed louvers channel rainwater away through the frame.

Questions

Forterra Custom Pergola Questions, Answered

What is Forterra?

Forterra is Rinova's custom louvered pergola. It is a motorized aluminum system that is made to measure, so the width, projection and height are built for your space instead of chosen from a list of kit sizes.

A single-motor Forterra can be up to 20 ft in projection (611 cm) and 14 ft 9 in wide (450 cm). Forterra Duo and Linear use two louver bays and two motors to reach 33 ft (1,006 cm). The maximum height under the gutter is 9 ft 10 in (300 cm). For bigger areas, several modules can be joined side by side or end to end.

Choose custom when your space doesn't match available standard kit dimensions, when the pergola needs to attach to an existing structure in a specific way, or when the project is larger or more complex. If a fixed-size Terra or Venta kit actually fits your space well, we'll recommend it.

No. Approximate width and depth are enough to begin. Our team will help you confirm exact dimensions during the consultation.

Yes. Forterra is available freestanding on four posts or wall-mounted, in both the single-motor and the two-motor Duo and Linear layouts.

The standard colors are RAL 7016 anthracite gray, RAL 9010 pure white and RAL 9005 jet black. The frame and the louvers can be different colors. Other RAL colors can be ordered at extra charge.

Forterra is motorized. A concealed 24 V linear actuator moves the louvers, and you control it from a radio remote. Optional sensors for rain, sun, wind, snow and temperature can be added.

Yes. LED lighting is available as dimmable daylight-white or RGB. Retractable screens (manual or solar-powered) and radiant heating can also be planned into a custom project.

Yes — custom planning suits commercial outdoor areas such as restaurant patios and other seating spaces, alongside residential projects.

Forterra is made to order. Factory production takes approximately 4–6 weeks. Shipping, permitting and installation scheduling are added to that, and we confirm the timeline with your quote.

Rinova provides installation guidance, and professional installation is commonly recommended for custom and motorized systems to ensure the best performance and durability.

Permit requirements vary by location and project — especially for attached or larger structures. Please confirm applicable requirements with your local authority. Rinova's team can discuss your project details, but this should not be taken as legal or permitting advice.

Start the conversation

Tell Us About Your Forterra Custom Pergola Project

Approximate dimensions and a few project details are enough to begin. A Rinova pergola expert can help you evaluate the available options.

Prefer to talk? +1 (949) 805-2233

Turnkey Project

Your pergola, delivered as a Turnkey Project

Rinova designs, engineers, permits and installs every pergola as one Turnkey Project — one company, one contract and one licensed crew from the first sketch to the final walkthrough. Financing is available with $0 down.

  1. Consultation & designFree consultation at our Santa Ana showroom or at your home. We measure, recommend the right system and size, and give you one fixed Turnkey Project quote.
  2. Engineered drawingsPE-stamped, permit-ready engineered drawings sized to your site, wind exposure and footing conditions.
  3. City permits & HOAWe pull the city permit and prepare HOA submittals for you, as part of every Turnkey Project.
  4. Footings, concrete & electricalOur own crew pours engineered footings and runs the electrical for motorized louvers, lighting and screens.
  5. Professional installationInstalled by Rinova's licensed team, not a subcontractor. One company sells, builds and stands behind it (CSLB #1116353).
  6. Warranty & supportLifetime warranty on the aluminum structure and paint, 10 years on moving parts, 5 years on motors and electrical.
